Product name: Kaideli 8 Parallel 615Hp Condensing Unit With Screw Compressors rack

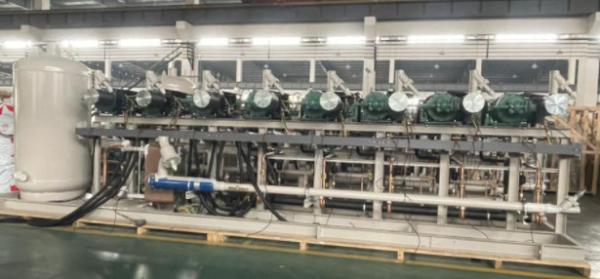

1. 8 Parallel compressors condensing unit pictures
2. Specification
Nomination: KCFS-050L/FBZ
K: Kaideli;C:Condenisng unit;F:air cooled;W:water cooled S:srew-050:HP;L:Low temp;/BZ: compressor
Unit Model |
Compressor | Evaporating temperature | Connection size | Overall dimensions |
| -40°C | -45°C | Suction | Liquid | L | B | H |
| Qo(kw) | Pe(kW) | Qo(kw) | Pe(kW) |
| KCFS-050L/FBZ | HSN6461-50 | 32.5 | 35.6 | 24.6 | 34 | Φ54 | Φ28 | 1800 | 1050 | 1300 |
| KCFS-060L/FBZ | HSN6461-60 | 38.3 | 44.3 | 28.6 | 42.6 | Φ76 | Φ28 | 1800 | 1050 | 1300 |
| KCFS-070L/FBZ | HSN6461-70 | 44.6 | 48.3 | 33.8 | 46.3 | Φ76 | Φ28 | 1800 | 1050 | 1300 |
| KCFS-075L/FBZ | HSN6461-75 | 48.5 | 51.8 | 37 | 49.6 | Φ76 | Φ28 | 2250 | 1100 | 1300 |
| KCFS-125L/FBZ | HSN6461-125 | 82.4 | 79.5 | 63.1 | 74.4 | Φ108 | Φ42 | 2250 | 1100 | 1730 |
| KCFS-160L/FBZ | HSN6461-160 | 103.5 | 108.4 | 79.1 | 102.7 | Φ108 | Φ42 | 2250 | 1100 | 1730 |
Remark: C.T 45℃,with economizer,superheat 10℃
Unit Model |
Compressor Model | Evaporating temperature | Connection size | Overall dimensions |
| -40°C | -45°C | Suction | Liquid | L | B | H |
| Qo(kw) | Pe(kW) | Qo(kw) | Pe(kW) |
| KCWS-050L/WBZ | HSN6461-50 | 34.1 | 32.1 | 26.1 | 30.8 | Φ54 | Φ28 | 1800 | 1050 | 1300 |
| KCWS-060L/WBZ | HSN6461-60 | 40.4 | 39.7 | 30.5 | 38.3 | Φ76 | Φ28 | 1800 | 1050 | 1300 |
| KCWS-070L/WBZ | HSN6461-70 | 46.9 | 43.9 | 35.9 | 42.2 | Φ76 | Φ28 | 1800 | 1050 | 1300 |
| KCWS-075L/WBZ | HSN6461-75 | 51 | 46.8 | 39.2 | 44.9 | Φ76 | Φ28 | 2250 | 1100 | 1300 |
| KCWS-125L/WBZ | HSN6461-125 | 87 | 72.5 | 67.5 | 68.3 | Φ108 | Φ42 | 2250 | 1100 | 1730 |
| KCWS-160L/WBZ | HSN6461-160 | 108.8 | 97.81 | 84.2 | 93.1 | Φ108 | Φ42 | 2250 | 1100 | 1730 |
Remark: C.T 40℃,with economizer,superheat 10℃
Unit Model |
Compressor | Evaporating temperature | Connection size | Overall dimensions |
| -10°C | -15°C | Suction | Liquid | L | B | H |
| Qo(kw) | Pe(kW) | Qo(kw) | Pe(kW) |
| KCFS-060H/FBZ | HSK6461-50 | 87.3 | 40.4 | 70.7 | 39.7 | Φ54 | Φ28 | 1800 | 1050 | 1300 |
| KCFS-070H/FBZ | HSK7451-70 | 107.5 | 50.1 | 86.8 | 50.2 | Φ76 | Φ28 | 1800 | 1050 | 1300 |
| KCFS-080H/FBZ | HSK7461-80 | 119.9 | 53.8 | 96.9 | 53.8 | Φ76 | Φ28 | 1800 | 1050 | 1300 |
| KCFS-090H/FBZ | HSK7471-90 | 132.7 | 59.3 | 107.5 | 58.2 | Φ76 | Φ35 | 2250 | 1100 | 1300 |
| KCFS-110H/FBZ | HSK8551-110 | 168.8 | 75.3 | 136.4 | 75.4 | Φ108 | Φ35 | 2250 | 1100 | 1730 |
| KCFS-125H/FBZ | HSK8561-125 | 189.8 | 81.5 | 153.6 | 81.5 | Φ108 | Φ42 | 2250 | 1100 | 1730 |
| KCFS-140H/FBZ | HSK8571-140 | 219 | 92.5 | 178.1 | 91.1 | Φ108 | Φ42 | 2250 | 1100 | 1730 |
Remark:C.T 45℃,subcooling 5℃,superheat 10℃
Advantages:
1. Cabin type structure, compact structure and good appearance
2. Scientific designs, steady air flow, fully exert capacity of the unit.
3. Rational performance design, high energy efficiency:
4. Convenient design for maintain(front board can be easily taken down)
5. Various brand of compressor for your choice,,Copeland,Frascold,Daming,Xueying,Fusheng
6. Fits different refrigerant. R134a/R404A/R507/R22
Customized specification leave me message for details.
3. Want to know other related products?-click picture for detailed specification
4. How to assure quality? Any procedure?
Our QC department will make sure of each step
5. Do you factory?
We are factory established in 1995 and through 28years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.
6. Do you attend exhibition?
Each year we will attend domestic national and foreign exhibition,also we will support our agent to attend exhibition,welcome to join us.
7. Why choose us
Professional:28 years focus one thing-refrigeration equipments
Material we use sufficient
Certificate:CE, ISO, and cetiifcate of producing special pressure equipment
8. Projects reference?
9. FAQ
1, Q:Where is your factory address?
A:We are factory and located in refrigeration equipment producing base Shengzhou,Zhejiang province.
2, Q: What is your package?
A: Our package comply to custom require not include original wood.
3, Q:What is your MOQ?
A: Ordinary products can order from 1 set.
4, Q: Can you offer sample?
A: Yes,we can offer sample.and cost and delivery at your charge.
5, Q:I can't find products on your list?
A: Please contact me directly.
6,Q:How can i confirm your factory?
A: We have third party verified document of Bureau Veritas report,you can download in company page or leave me message to get.
